AMP1-E12

AMP1 E12

Description

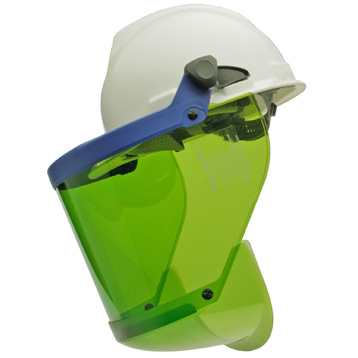

High Performance Arc Flash Protective Face Shield kit with large transparent, ergonomically shaped chin protector. Includes cap bracket with US clips. Tested to an ATPV of 12 cal/cm2 as per ASTM F2178 (Open Arc Test). Meets NFPA 70E (HRC 2). Certified to EN 166. Exceeds Arc Protection Class 2 as per GS-ET-29 (Open Box Test).


Download pdf

Specification

  • MaterialPolycarbonate
  • Window Size18,42 x 50,8 x 0,15 cm (7.25“ x 20“ x 0.06“)
  • Weight334 g (11.78 oz)
  • ColorGreen
  • StandardEN 166, ANSI Z87.1, GS-ET-29, (Class 2),
    ASTM F2178, NFPA 70E

Order Data

  • Product NameAMP1-E12
  • Product Number9004600

Application

The product is designed to protect eyes and face, if used as intended, against the mechanical and thermal hazards of an arc flash during live working or when staying in the vicinity of live parts. It is not intended for arc welding, especially not to protect against long term high heat, chemicals or any other radiation than emitted by an arc flash.
