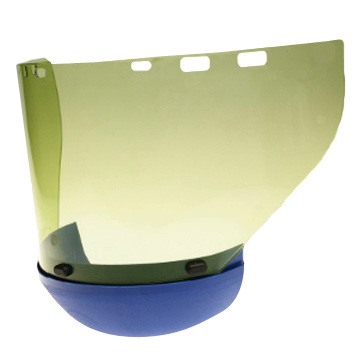

Arc Shield replacement window with large, permanently attached chin protector for Arc Flash protection. ATPV 25 cal/cm2. Designed to meet EN 166, EN 170 and GS-ET-29, when appropriately integrated into a hood (matter of final approval).
- Window Size18,4 x 50,8 x 0,15 cm (7,25“ x 20“ x 0.06“)
- Weight284 g (10.02 oz)
- StandardEN 166, ANSI Z87.1, GS-ET-29 (Class 2),
ASTM F2178, NFPA 70E
- Product NameIM23-AFA-PC-E25
- Product Number2140017
The product is designed to protect eyes and face, if used as intended, against the mechanical and thermal hazards of an arc flash during live working or when staying in the vicinity of live parts. It is not intended for arc welding, especially not to protect against long term high heat, chemicals or any other radiation than emitted by an arc flash.
