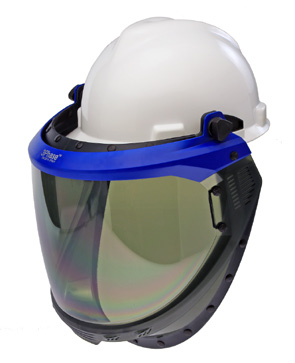

3P20-S

3P20 S

Description

Highly transparent 3Phase® Arc Flash protection lift-front hood designed to be worn with shrouds. ATPV 20 calories.


Download pdf

Specification

  • MaterialPolycarbonate
  • Window Size54 x 21 x 0,23 cm (26.26“ x 8.27“ x 0.09“)
  • Weight499 g (17.6 oz)
  • ColorGrey
  • StandardANSI Z87.1, ASTM F2178, NFPA 70E,
    20 cal/cm²

Order Data

  • Product Name3P20-S
  • Product Number9024000

Application

The product is designed to protect eyes and face, if used as intended, against the mechanical and thermal hazards of an arc flash during live working or when staying in the vicinity of live parts. It is not intended for arc welding, especially not to protect against long term high heat, chemicals or any other radiation than emitted by an arc flash.

The PAULSON 3Phase Face Shield Kit 3P20-S is certified to EN 166, EN 170, GS-ET-29 to an APC 2. Together with an appropriate shroud, made from certified textiles tested to an ATPV of minimum 20 cal/cm2 and attached to the 3P20 frame interface according to the state of the art, the complete hood is supposed to successfully pass the ASTM 2178 testing also at an ATPV of minimum 20 cal/cm2, as already passed in several protector configurations.
